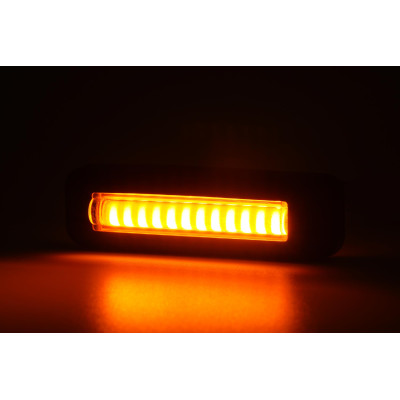

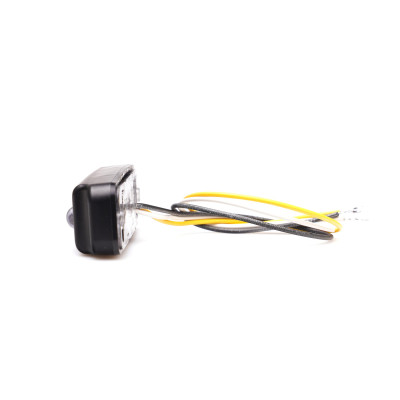

LED warning lamp yellow flashing 12V/24V (2463) ECE E20
zł55.00
Yellow LED warning light 12V/24V W283.
5 lighting programs, flashing light
The light can only be mounted horizontally.
Guarantee safe & secure checkout
1. If you plan to install several lamps and synchronise them with each other, make sure that only one of them is connected as the ‘MASTER’. NOTE Only lamps of the same type and with the same number of patterns can be synchronised.

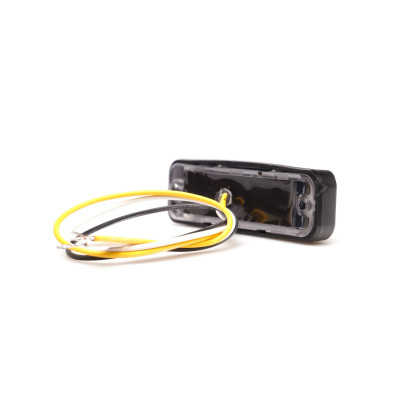

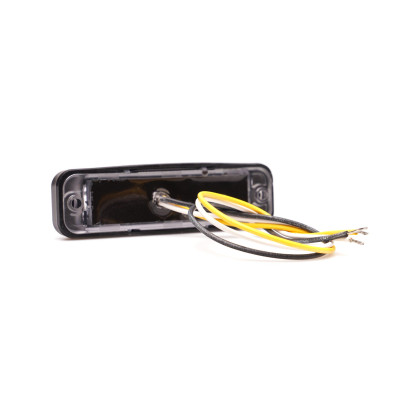

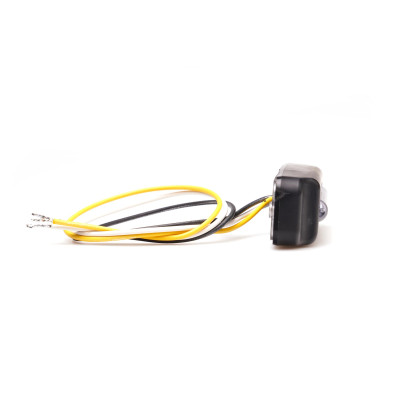

2. The Master, Slave function of the lamp is selected by connecting the white wire for the MASTER lamp or the yellow wire for the SLAVE lamp respectively to the (-) power supply of the vehicle.
3. The change of the synchronisation method to flashing in counter-phase is only possible to set in the SLAVE lamp(s), but without connection to the MASTER circuit.During operation of the SLAVE lamp(s), the white colour lead should be shorted to (-) of the power supply for about 5 seconds. The change will be confirmed by skipping one series of flashes. Shorting the white lead to (-) of the power supply again in SLAVE mode will set the lamp to synchronise in phase. All SLAVE lamps for which the phase of operation is to be changed can be switched together.
4. To change the pattern, short-circuit the synchronisation line for approximately 1 second to the (+) of the power supply. The MASTER lamp enforces the pattern number on the SLAVE lamps.
WAS2463
Data sheet
- Country of manufacture
- Poland
- Light source
- LED
- Voltage
- 12/24V
- Power [W]
- 8
- Lamp type
- single function
- Functions
- warning light
- Assembly side
- universal
- LEDs quantity
- 12
- Colour
- yellow
- Water resistance
- IP66/IP68
- Approval
- E20
ECE - Guarantee
- 24 months
- Electric wire
- 24cm
Specific References
- EAN13
- 5903098149994
