LED rear direction indicator lamp 12V-24V (1132/I) E20

zł72.00

LED rear direction indicator lamp 12V-24V W156 1132/I.

Quantity

Guarantee safe & secure checkout

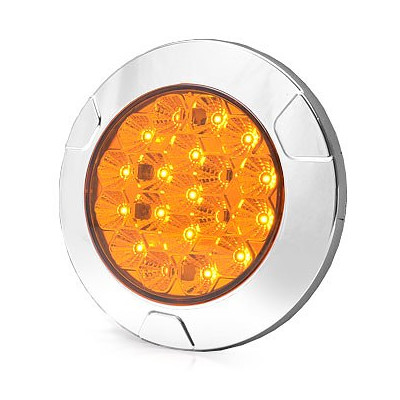

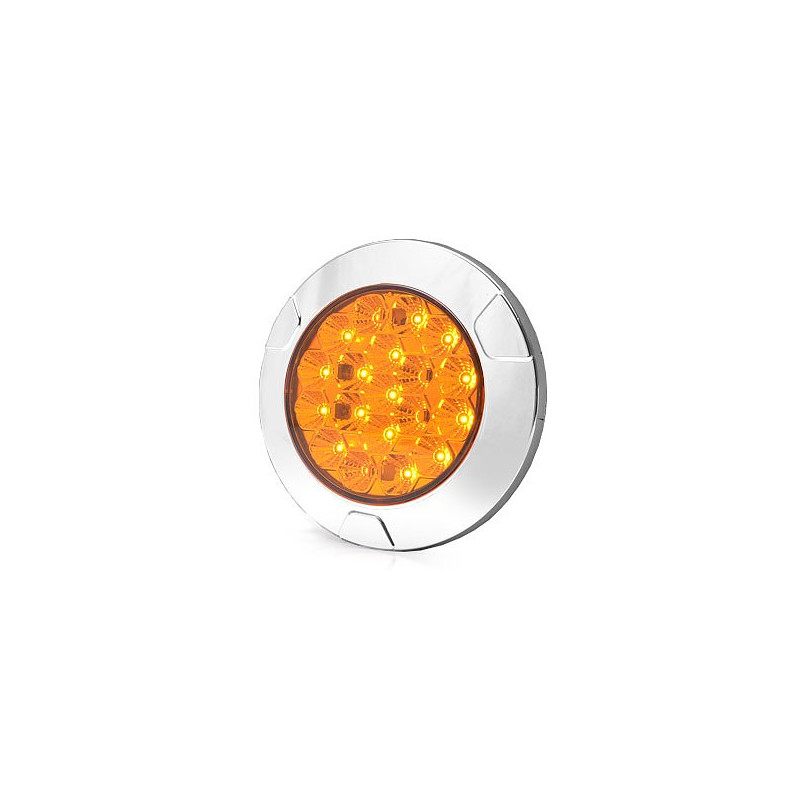

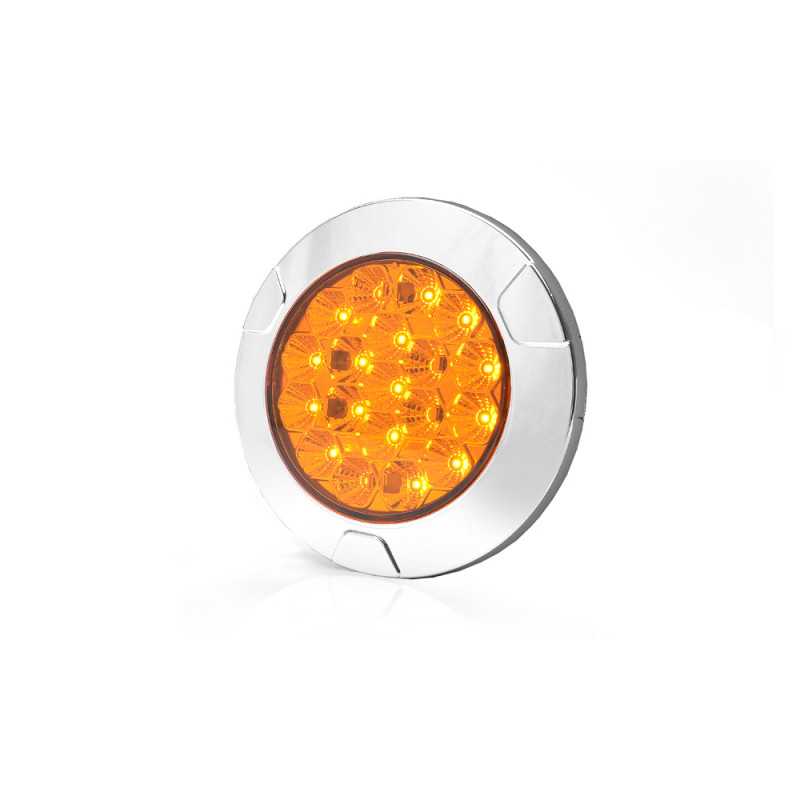

W156 is a modern 19 LED direction indicator lamp, characterized by its attractive design and low power consumption. Lamp with reflector in the shape of a honeycomb, harmoniously contained within a chrome ring with a diameter of 152mm. The lamp can work at 12V and 24V operating voltages, has an EMC approval and IP protection 66/68.

It is available in variant:

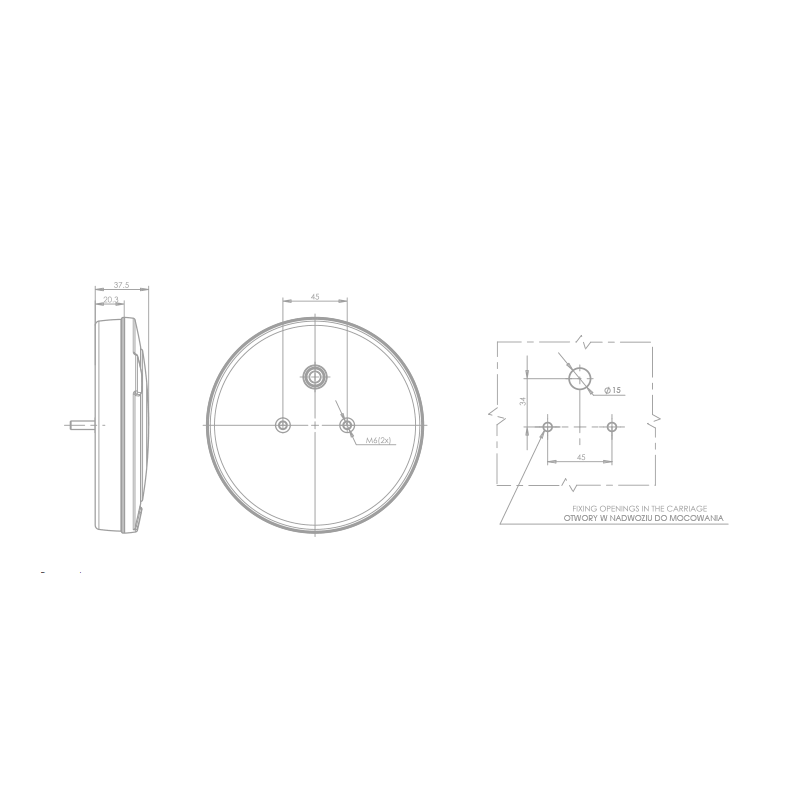

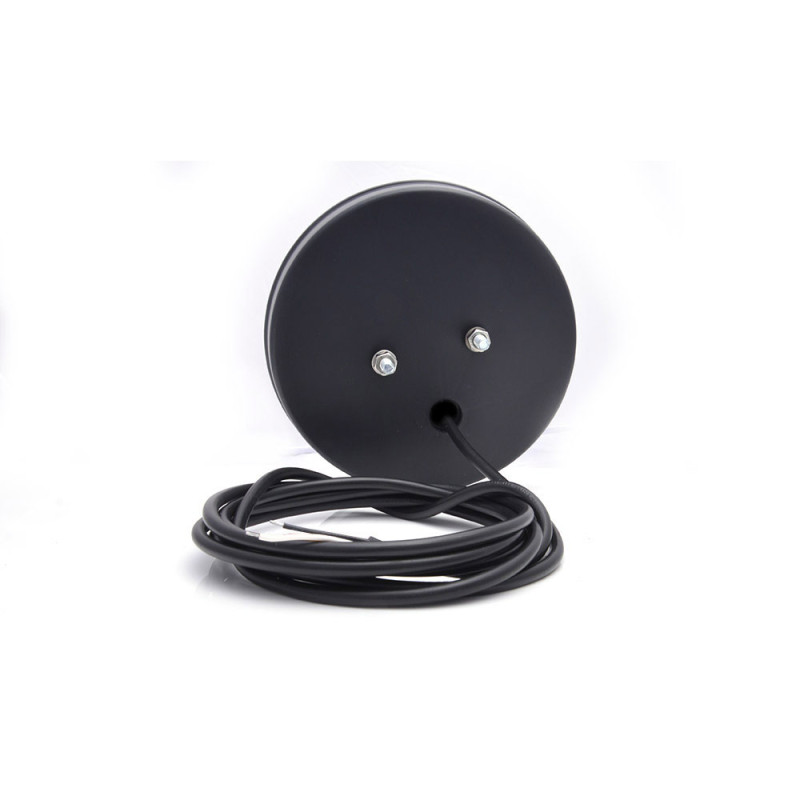

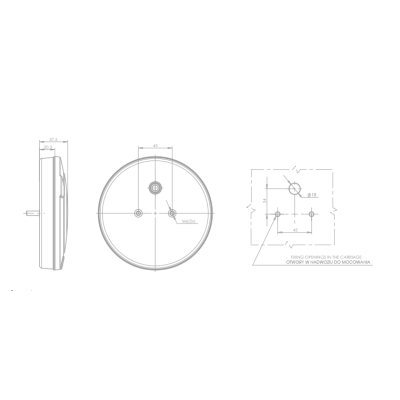

-1132/I is available in a version with a rear housing featuring M6 screws spaced 45 mm apart.

The specially designed reflector using energy-efficient LEDs, slim design and full production in Poland, make the W156 lamp the exceptionally attractive product.
Approval: E20, R10, R6
Operating voltage: 12V - 24V
Light source: 19 LED
Weight: ~ 0,45 kg
IP Class: IP66 / IP68

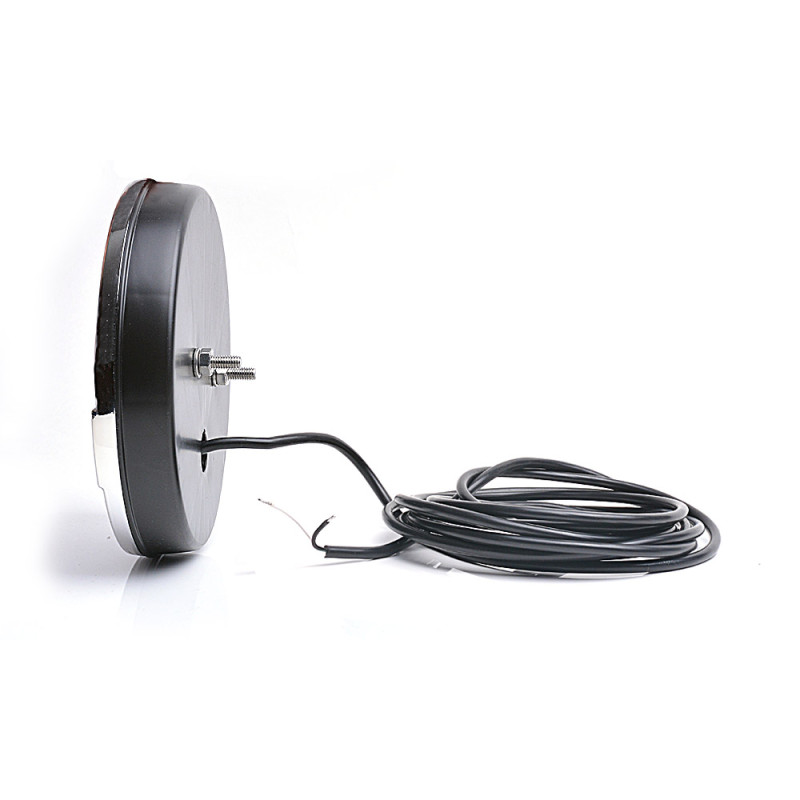

Cable: 200 cm YLY-S 2x0,5mm2
Power consumption at 12V operating voltage: 2.5W
Power consumption at 24V operating voltage: 5W



WAS1132/I

Data sheet

Country of manufacture
Poland
Light source
LED
Voltage
12V-24V
Lamp type
single function
Shape
round
Functions
rear direction indicator
Assembly side
universal
LEDs quantity
19
Water resistance
IP66/IP68
Approval
E20
ECE
R06
R10
Guarantee
24 months
Electric wire
200cm YLY-S 2x0,75mm2
Height
152
Width
152

Specific References

EAN13
5901323131981
